Derale Transmission Cooling Pan GM Turbo Hydro TH400 3" Deep + Tubes

Name: Derale Transmission Cooling Pan GM Turbo Hydro TH400 3" Deep + Tubes
Brand: Turbo Parts
SKU: 14201
Price: 843.95 AUD
Availability: InStock

$843.95

Not 100% sure it fits? Some parts are very model-specific. Message us with your rego or VIN and we'll confirm the right part before you buy.

30-Day Returns Change of mind welcome

Tracked Shipping Australia-wide

Secure Checkout SSL encrypted

Easy ways to pay

ShopPay Pay PayPal afterpay VISA G Pay

Not quite the right part? Tell us your car and we’ll check the warehouse — replies within 12 hours.

Request a part

Derale Performance — Transmission Pans

Derale Performance Transmission Pans (Turbo Parts 14201). Supplied brand new. Derale Transmission Cooling Pan GM Turbo Hydro TH400 3" Deep + Tubes.

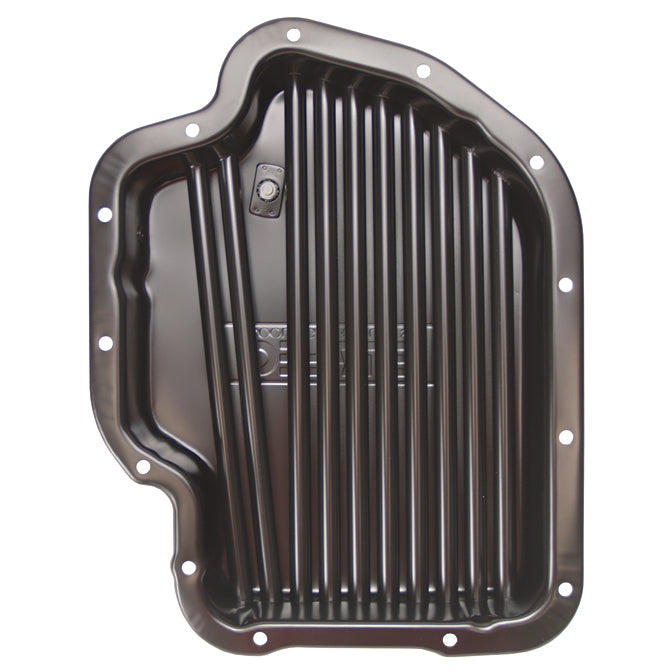

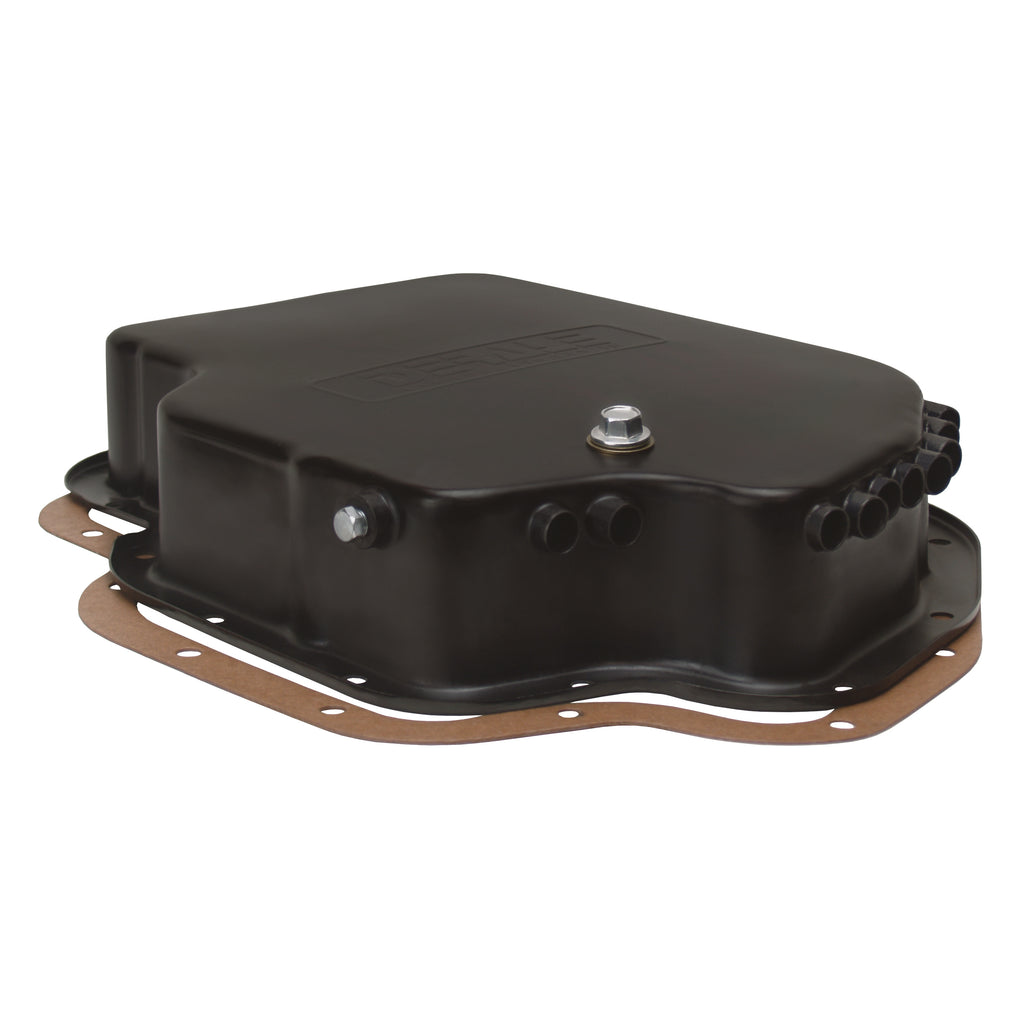

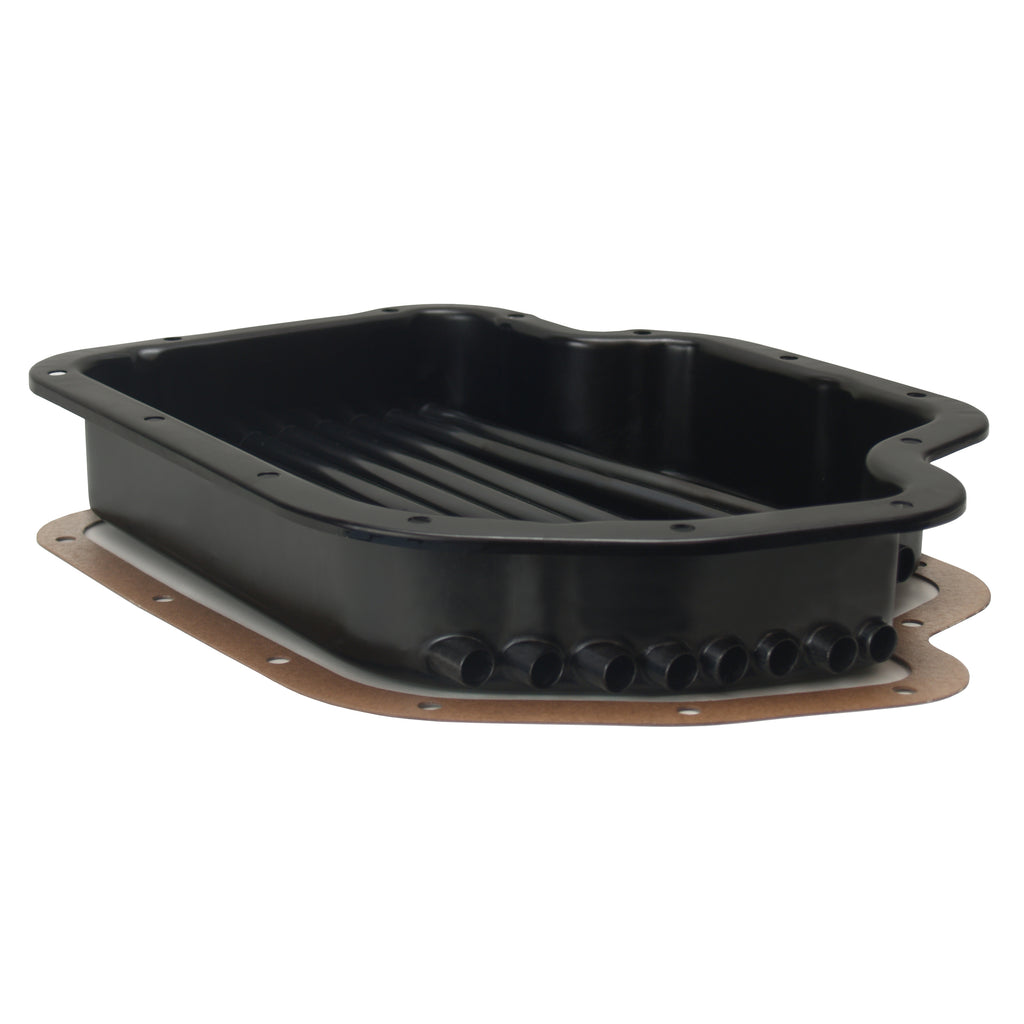

Transmission Cooling Pan GM Turbo Hydro TH400 3" Deep + Tubes Derale 14201. Derale's TH400 Transmission Cooling Pan #14201 uses air passing beneath the vehicle and redirects it to help lower transmission oil temperatures. With brazed, turbulator-equipped airway tubes passing through the lower section of the transmission pan for more efficient cooling, each is individually pressure tested to ensure a leak-free pan. We'VE included a much stronger magnetic drain plug and rubber/steel reusable washer, in addition to a 1/8" NPT temperature sender bung located in the side of the pan. Finished with a durable black two-stage coating, each pan also includes neoprene gasket and 1/8" NPT temperature sender plug. Pan Dimensions: 16 1/2" Length x 12 13/16" Width x 3" Height. Drain plug adds 1/4" to height. Tube depth: 2". Temp bung size: 1/8" NPT. Drain plug size 1/2"-20. Replacement drain plug Derale Part Number 14000. Heavy gauge stamped steel construction. Two stage heat dissipating black finish. 1/8" NPT temperature sender port. Reduces fluid temperatures up to 50°F. Increases fluid capacity by Usa 3 qts. 8 oz. Patented turbulator cooling tubes add heat transfer capability. Magnetic drain plug with increased magnetic strength and rubber/steel washer. Uses OEM filter with no filter extension required.

What's Included

1x Transmission Cooling Pan GM Turbo Hydro TH400 3" Deep + Tubes Derale 14201

Product Details

Brand	Derale Performance
Manufacturer Part Number	14201
Type	Transmission Pans
Barcode (UPC)	083277142017
Dimensions (W x H x D)	49 x 37 x 17 cm
Weight	4940 g
Warranty	12 Months

Vehicle Fitment

Not 100% sure this fits? Some parts are very specific to a model or build, and any years/engine shown are a guide only. Please confirm this part suits your exact vehicle before purchasing — contact us with your rego or VIN and we'll check it for you.
