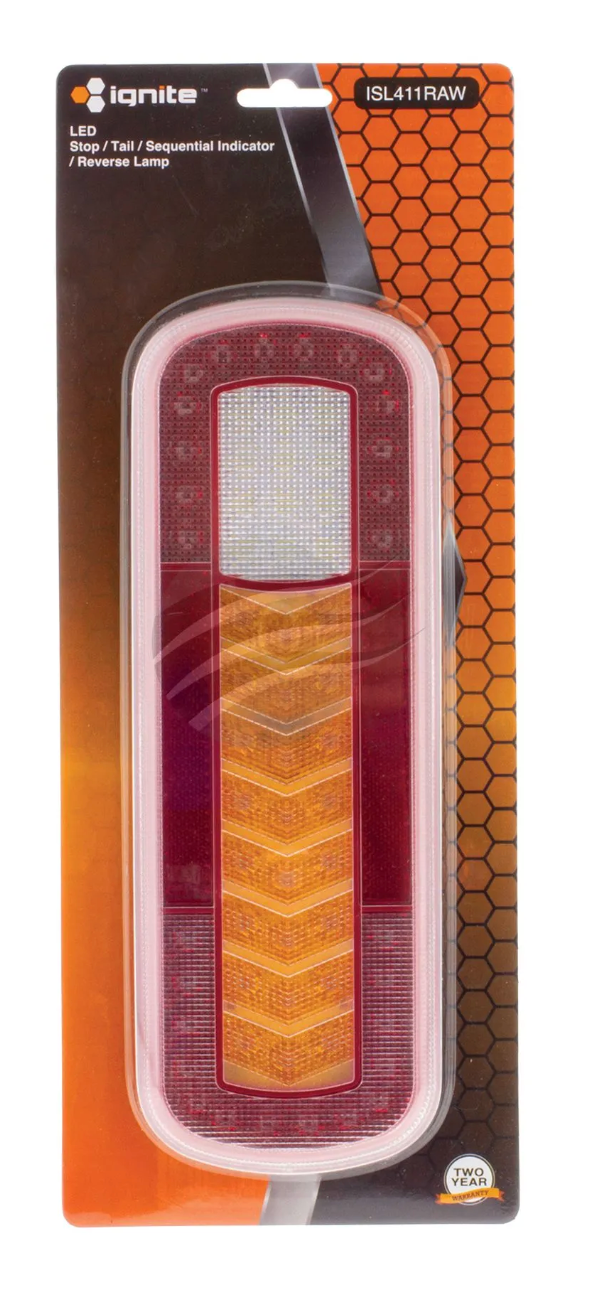

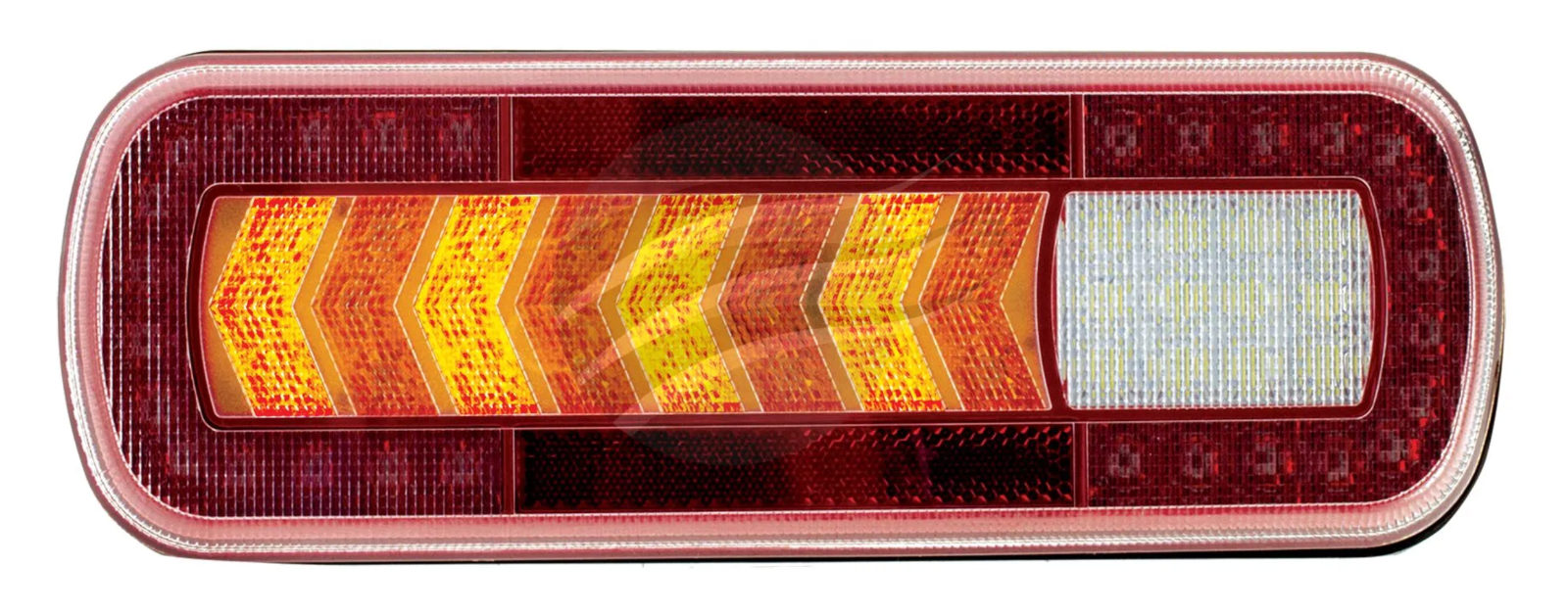

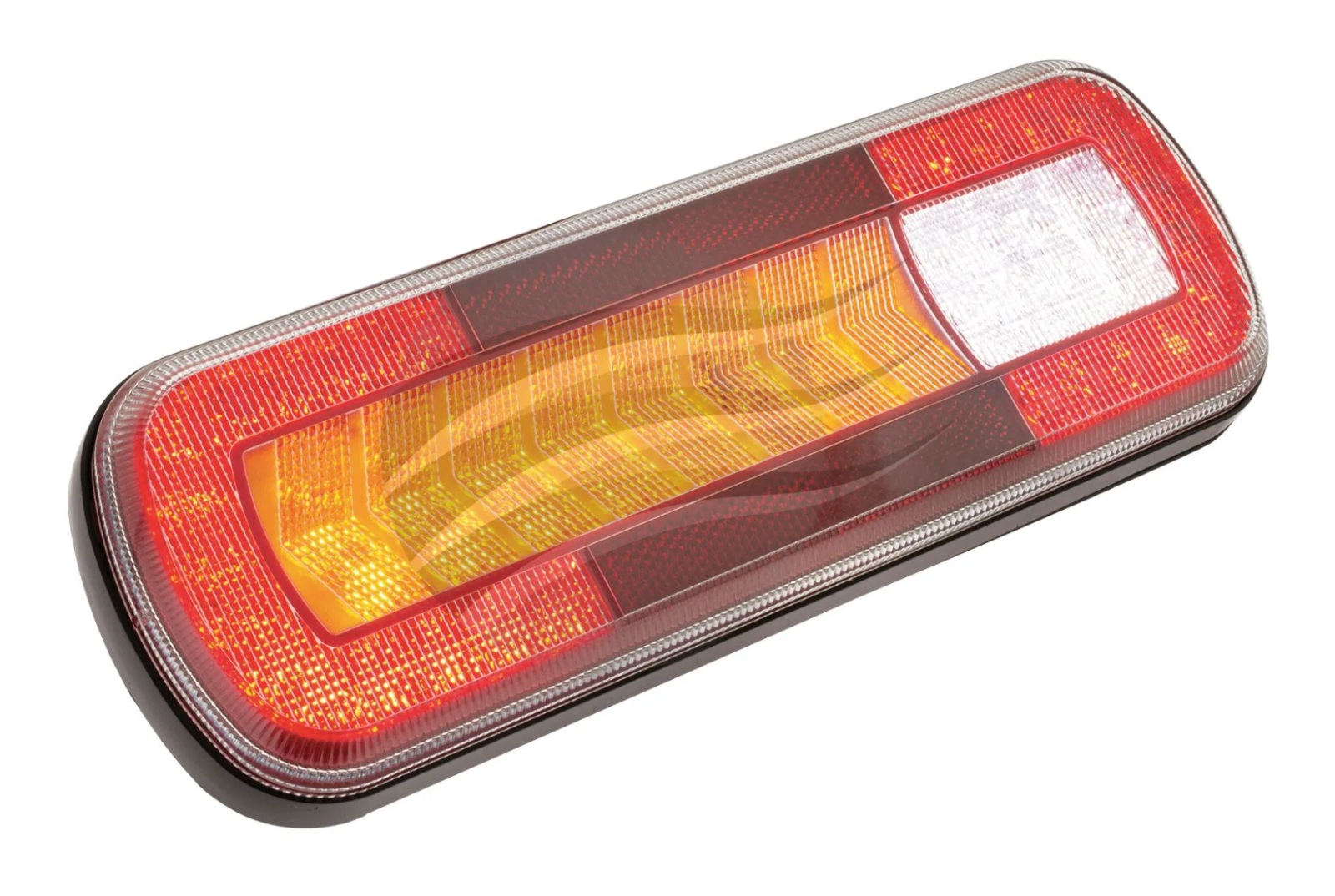

2x Ignite LED Rear Combination Lamp – Stop / Tail / Sequential Indicator / Reverse / Fog – 10–30V

DESCRIPTION

Upgrade your vehicle’s lighting with the premium Ignite LED Rear Combination Lamp, featuring Stop, Tail, Sequential Indicator, Reverse, and Fog functions in one sleek unit. Designed for high visibility, long life, and a modern European-style sequential indicator, this lamp combines safety and style for any vehicle setup.

Perfect for trailers, caravans, trucks, and 4WDs, the Ignite combination lamp is built tough with full waterproof sealing, a low-profile design, and fully compliant ADR and ECE approvals.

FEATURES

  • Multivolt 10–30V system – suitable for 12V and 24V vehicles

  • Functions: Stop, Tail, Sequential Indicator, Reverse, and Fog

  • LED Configuration:

    • 28 × High Intensity Red SMD LEDs – Stop/Tail

    • 24 × High Intensity Amber SMD LEDs – Sequential Indicator

    • 12 × High Intensity White SMD LEDs – Reverse

  • Sequential Indicator:

    • Amber LEDs illuminate left-to-right or right-to-left in sequence

    • Provides clear directional signal and a premium European look

  • Current Draw:

    • Stop – 0.20A @ 12V / 0.11A @ 24V

    • Tail – 0.03A @ 12V / 0.02A @ 24V

    • Indicator – 0.13A @ 12V / 0.07A @ 24V

    • Reverse – 0.17A @ 12V / 0.09A @ 24V

  • Lens: Clear Polycarbonate with inbuilt retro reflectors

  • Housing: Black ABS plastic, stud or screw mountable

  • Cable: 500mm pre-wired 6-core sheathed lead

  • LED Lifespan: 10,000 hours

  • IP67 Rated – fully sealed against dust and moisture

  • Reverse Polarity & Surge Protection

  • Shock, UV, and Water Resistant

  • Operating Temperature: -40°C to +65°C

  • Weight: 339g

COMPLIANCE

  • ECE R7 / ADR 49/00 – Rear Stop Lamp

  • ECE R6 / ADR 6/00 2A – Rear Indicator Lamp

  • ECE R23 / ADR 1/00 – Reverse Lamp

  • ECE R10, CE Approved, EMC Compliant

  • Refer to ADR 13/00 for mounting requirements

SPECIFICATIONS

Specification Details
Type LED
Shape Rectangular
Voltage 10–30V Multivolt
Mount Surface Mount
Width 283 mm
Height 100 mm
Depth 29 mm

PACKAGE INCLUDES

  • 2 × Ignite LED Rear Combination Lamp (Blister Pack)

  • 2 × 500mm Pre-Wired 6-Core Cable

Modern Sequential Indicator – European Look
Multifunction LED: Stop, Tail, Indicator, Reverse, Fog
Ideal for trailers, caravans, trucks & 4WDs
Fully sealed, ADR approved, long-lasting and vibration tested
